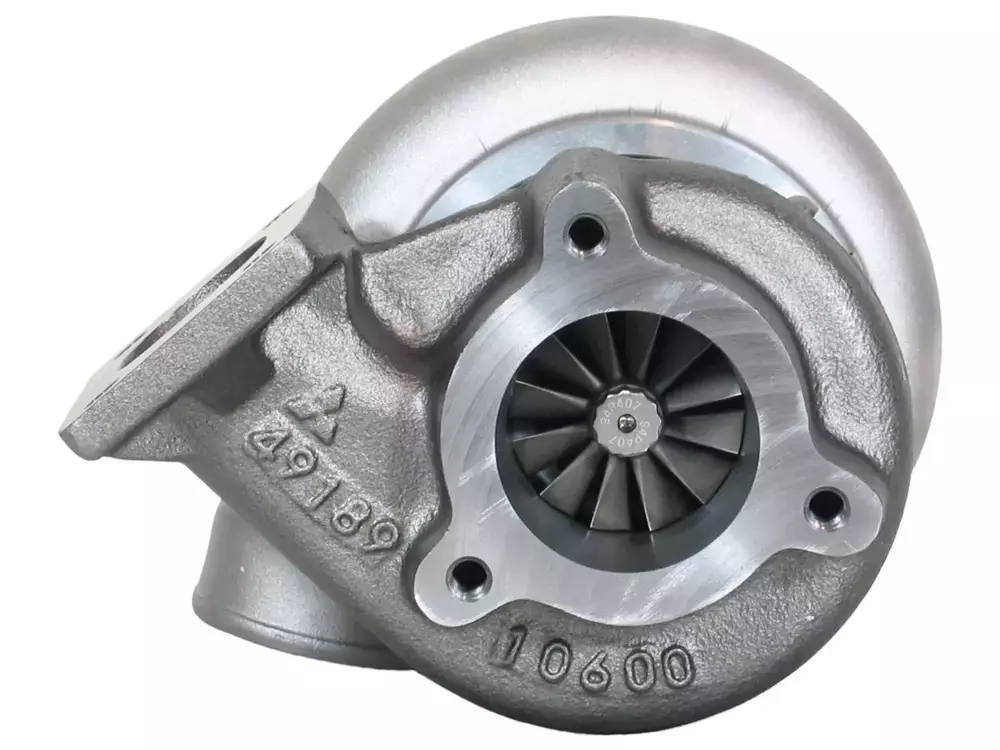

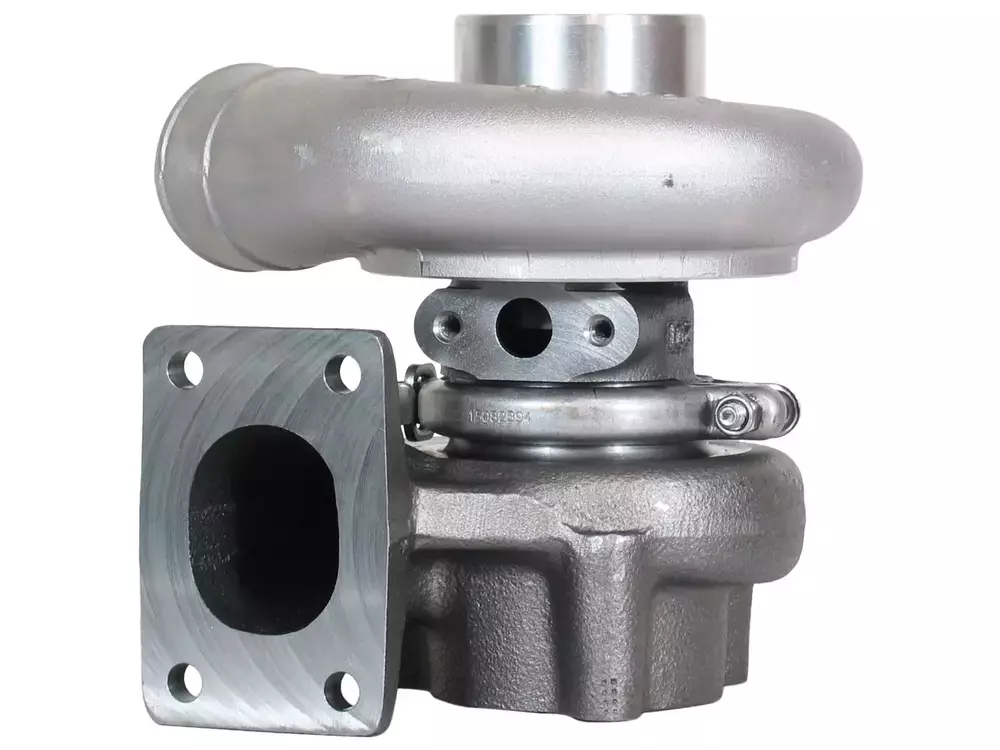

Картридж турбіни Mitsubishi TD04HL Turbo екскаватор Kobelco SH100 Kobelco SK120 4BD1T 49189-00501

Картридж турбіни Mitsubishi TD04HL Turbo екскаватор   Kobelco SH100 Kobelco SK120 4BD1T 49189-00501

Part Number: 49189-00501
Interchangeable Number: 4918900501, 49S89-00501, 49S8900501
OEM Number: 5I-8122, 5I8122, 8943675161, 8943675161A

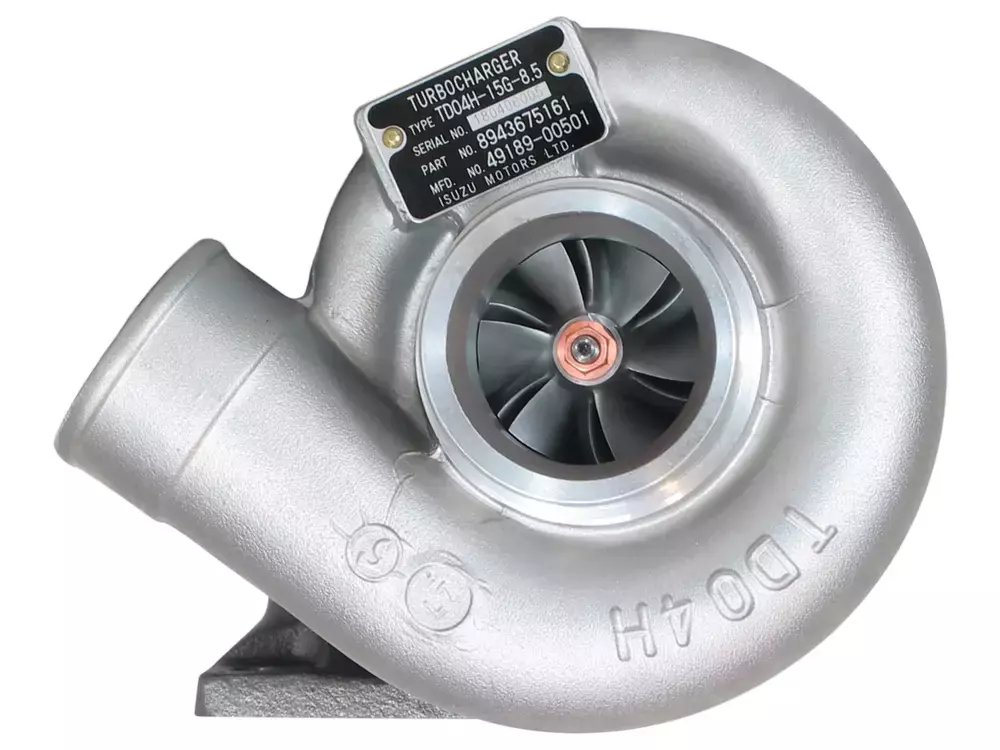

Turbo Model: TD04HL, TD04HL-15G-8.5
Manufacturer: Mitsubishi Heavy Industries - MHI

Engine: 4BD1, 4BD1T, A-4BG1T
Engine Manufacturer: Isuzu
Displacement: 3.9L (4BD1, 4BD1T), 4.3L (A-4BG1T)
Fuel: Diesel

Back Plate: 49135-00044 (49135-15405, 49173-22500)(Flat Back)(1401404300, 1800016030)
Bearing Housing: 49189-26400 (49189-20110)(Oil Cooled)(1900011184, 503050001)
CHRA: 49189-08100 (1000050013)  TD04-024
Compressor Housing: 49189-50701/49189-55701/49189-55710
Compressor Wheel: 49177-43400 (49189-40200)(Ind. 41.29 mm, Exd. 55.69 mm, 6+6 Blades, Super Back)(1401404415, 1200030030)
Cooling: Air
Gasket (Compressor Outlet): 2344818
Gasket (Oil Outlet): 210317 (5I7689)(Paper)(1900000042)
Gasket (Turbine Inlet): 5I7933
Heat Shield: 49183-19300 (1401404340, 2030-016-085, 506040003)
Repair Kit: 49189-80020/49189-84000 (49177-80400)(1401404753, 5000050004, 509040002)
Turbine Housing A/R: 8.5
Turbine Housing: 49189-10600/49189-15600/49189-15610
Turbine Wheel: 49189-30100 (Ind. 52 mm, Exd. 45.6 mm, 12 Blades)(1401404438, 1100030028, 501050002)

Application:

Kobelco SH100 with 4BD1T Engine
Kobelco SK120, SK120-3, SK120-5 Excavator with 4BD1T Engine
