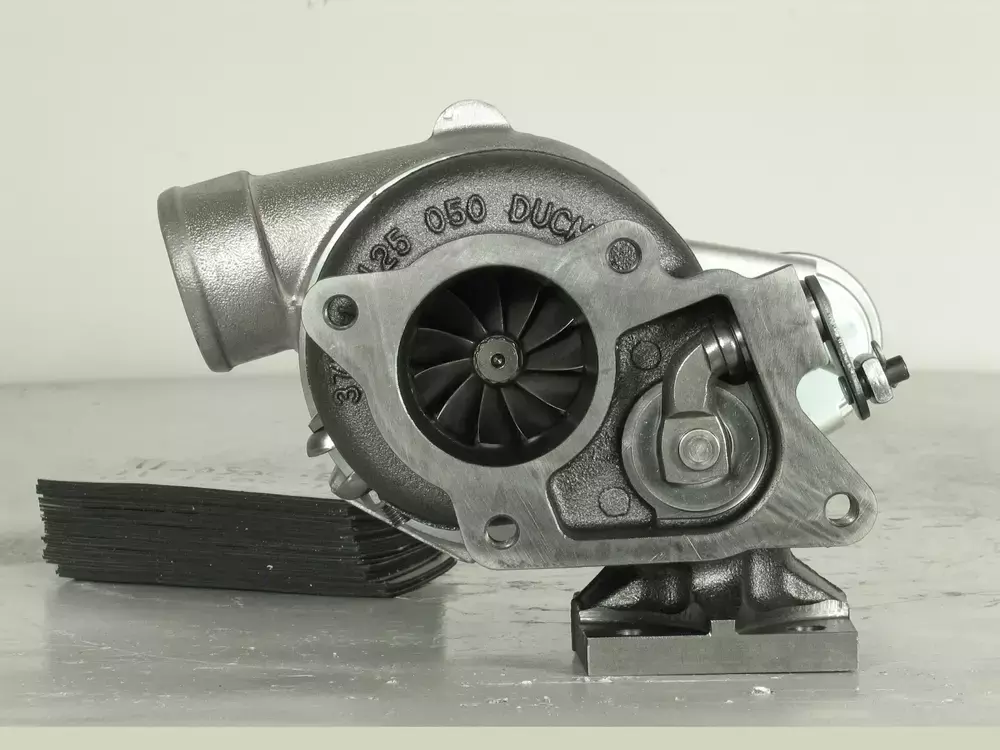

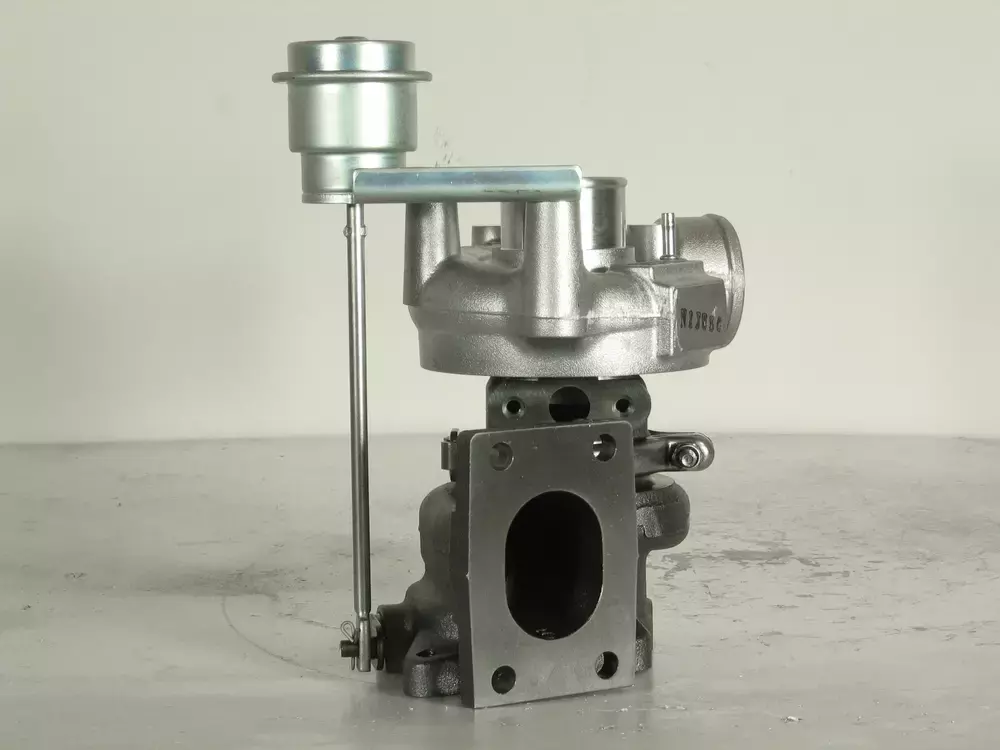

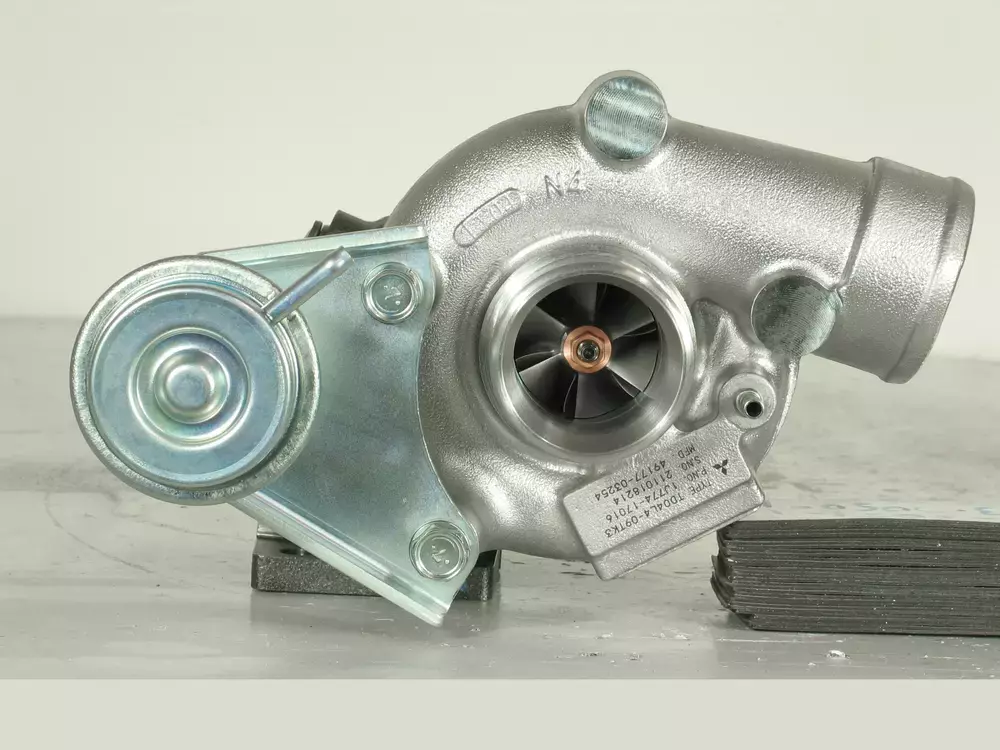

Картридж турбіни Mitsubishi TD04L4 Turbo Kubota Loader V3307-DI-TE3-Q 3.3L 49177-03253

Картридж турбіни Mitsubishi TD04L4 Turbo Kubota Loader V3307-DI-TE3-Q 3.3L 49177-03253

Part Number: 49177-03253
Interchangeable Number: 4917703253, 49177-03250, 4917703250, 49177-03251, 4917703251, 49177-03252, 4917703252, 49177-03254, 4917703254
OEM Number: 1J774-17010, 1J77417010, 1J774-17012, 1J77417012, 1J774-17013, 1J77417013, 1J774-17014, 1J77417014, 1J774-17015, 1J77417015
Turbo Model: TD04L4, TD04L4-09TK3-5.0
Manufacturer: Mitsubishi Heavy Industries - MHI

Engine: V3307-DI-TE3-Q, V3307-DI-T-E3B, Stage 3B (Tier 4)
Displacement: 3.3L, 3300 ccm, 4 Cylinders Inline
Fuel: Diesel

Actuator: 49477-18731/49477-18700
Back Plate: 49135-00044 (Super Back)(1401635300)
Bearing Housing: 49177-20110/49177-25100 (Oil Cooled)
CHRA: 49177-08472/49177-08471
Compressor Housing: 49377-58160/49377-58130
Compressor Wheel: (Ind. 49 mm, Exd. 34.75 mm, 6+6 Blades, Super Back)
Cooling: Air  TD04-067
Heat Shield: 49170-19100 (1401404340)
Repair Kit: 49177-80000/49177-80410 (1401404755)
Turbine Housing: 49377-13650/49377-13640
Turbine Wheel: (Ind. 47.21 mm, Exd. 41.22 mm, 11 Blades)

Application:
Kubota SVL75-2 Loader, Tractor, Industrial with V3307-DI-TE3-Q Engine
